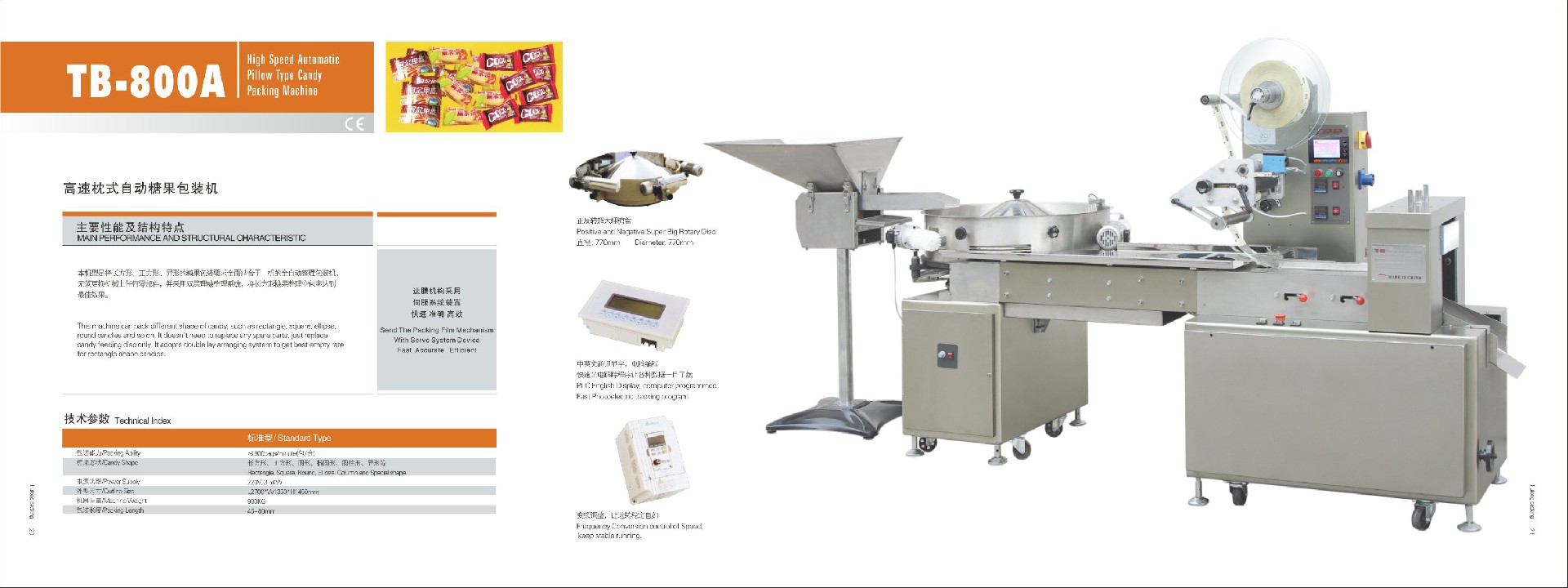

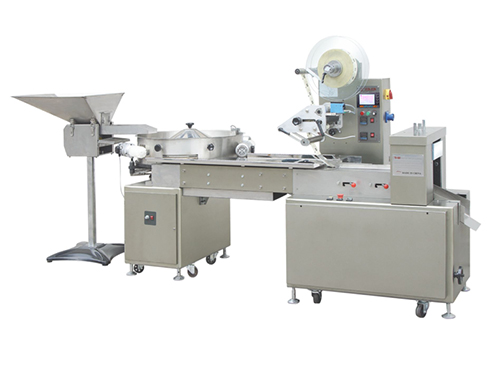

| 高速枕式自動糖果包裝機 |
主要性能及結構特點 MAIN PERFORMANCE AND STRUCTURAL CHARACTERISTIC |
本機型是將長方形、正方形、異形的糖果包裝要求全面結合于一機的全自動整理包裝機,無須更換機械上任何零部件，并采用雙層理糖整理系統，將長方形糖果整理空包率達到送膜機構采用最佳效果。
This machine can pack afferent shape of candy, such as rectangle, square,ellipes,round candies and so on. It doesn't need to replace any spare parts, just replace candy feeding disc only, It adopts double lay aranging System to get best empty rate for rectangle shape candies.
| 送膜機構采用 伺服系統裝置 快速準確高效 Send The Packing Film Mechanism With Servo System Device Fast Accurate Efficient
|
| 技術參數 Technical Inde |
| 標準型/Standard Type |
| 包裝能力/Packing Ability | ≤800bags/minue(包/分） |
| 糖果形狀/Candy Shape | 長方形、正方彩、圓形、橢圓形、圓柱形、異形等 Rectangle Squre. Round Ellipse Column and Special shape. |
| 電源功率/Power Supply | 220V，3.5KW |
| 外型尺寸/Outline Size | L2700*W1350*H1450mm |
| 機器重量Machine Weight | 980KG |
| 包裝長度Packing Length | 45-80mm |
